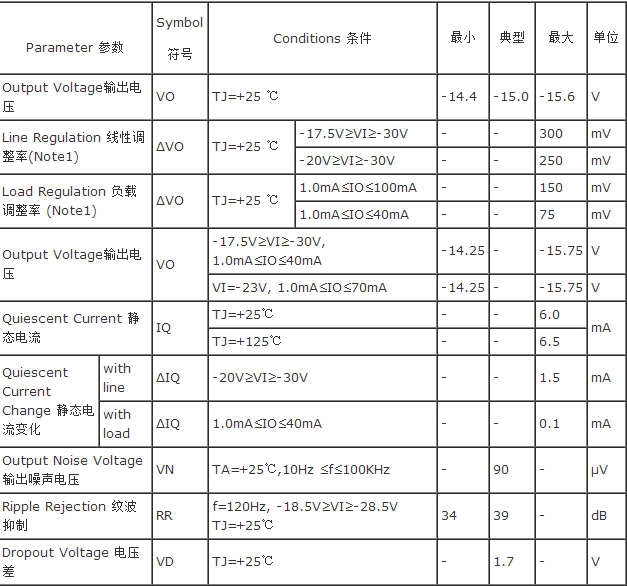

Electrical Characteristics 电气特性(MC79L15A LM79L15A KA79L15A )

(VI =-23V, IO=40mA, CI=0.33ìF, CO=0.1μF,0℃≤TJ≤+125℃, unless otherwise specified除非另有说明)

Note

1. Load and line regulation are specified at constant junction temperature. Change in VO due to heating effects must be taken

into account separately. Pulse testing with low duty is used.

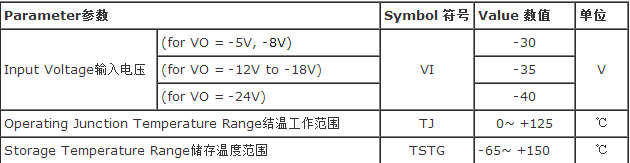

极限参数：

图1 LM79LXXX引脚排列图

图2 LM79LXXX内部电路图

图3 LM79LXXX典型测试电路图

图4 正负电压对称输出电路

图5 LM78LXXX TO-92封装图片

图6 LM78LXXX 8-SOP贴片封装图片

图7 LM78LXXX SOT-89贴片封装图片
